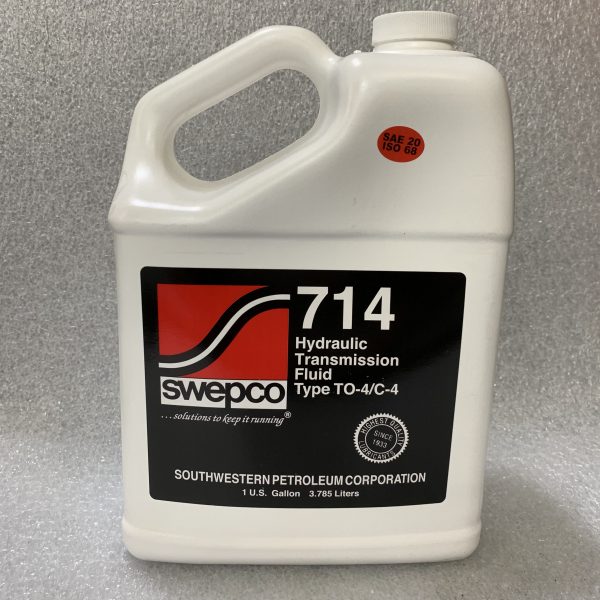

Swepco 714 20wt Transmission Fluid

Swepco 714   20wt Transmission Fluid

This is the finest racing transmission fluid on the market. Run what we run!

1 Gallon Container

$38.75

Description

Swepco 714   20wt Transmission Fluid

This is the finest racing transmission fluid on the market. Run what we run!

1 Gallon Container

Typical Physical Properties:
ISO Grade ……………………………… 32 …………………………………………………. 220
SAE Grade …………………………….. 10 …………… 20 ………….. 30 ………………. 50
Density, @60°F, lbs/gal(kg/l) …. 7.33(.88) …. 7.35 (.88) …. 7.4(.89) …. 7.46 (.90)
Viscosity
cSt @ 40°C ………………………. 30.03 ……… 35.64 …….. 83.33 ……… 228.98
cSt @ 100°C ……………………… 5.81 ……….. 7.03 ………. 11.9 ………… 20.15
Viscosity Index …………………….. 138 …………. 163 ………… 135 ……………. 100
Pour Point, °F (°C) ……………. -33 (-36) ….. -40 (-40) ….. -6 (-21) …….. 5 (-15)
Flash Point (COC), °F (°C) ….. 420 (216) …. 435 (224) … 450 (232)…. 500 (260)
Color ……………………………………. Red ………… Red ……….. Red ……………. Red
Typical Chemical Properties:
Calcium, % weight ………………………………………………………………………. 0.421
Zinc, % weight …………………………………………………………………………….. 0.106
Phosphorous, % weight ……………………………………………………………….. 0.141
Sulfur, % weight …………………………………………………………………………… 0.011
Typical Performance Properties:
Humidity Cabinet (GM 6137-M, Section 1) ………………………………. No Rust
Power Steering Pump Wear
(GM 6137-M, Section 7) ……………. No scuffing, scoring, wear or chatter
Type C-4 Turbo Hydra-Matic Oxidation Test (GM 6137-M Sec K Mod)
Varnish & Sludge Deposits ……………………………………………………….. Trace
Viscosity Increase @ 210°F (100°C) ……………………………………….. 4.65%
Clutch Friction (Modified GM 6137-M, Section M)
Lock up Time @ 5500 cycles, seconds ………………………………………. 0.79
Torque @ 5500 cycles & 0.2 seconds ft/lbs ………………………………….. 91
Torque Difference @ 1500 cycles vs 5500 cycles ft/lbs ………………… 24

Additional information

Weight 9 lbs
